Problem #91 medium

Right triangles with integer coordinates

The points $P(x_1, y_1)$ and $Q(x_2, y_2)$ are plotted at integer co-ordinates and are joined to the origin, $O(0,0)$ , to form $\triangle OPQ$ .

Right triangle coordinate example 1

There are exactly fourteen triangles containing a right angle that can be formed when each co-ordinate lies between $0$ and $2$ inclusive; that is, $0 \le x_1, y_1, x_2, y_2 \le 2$ .

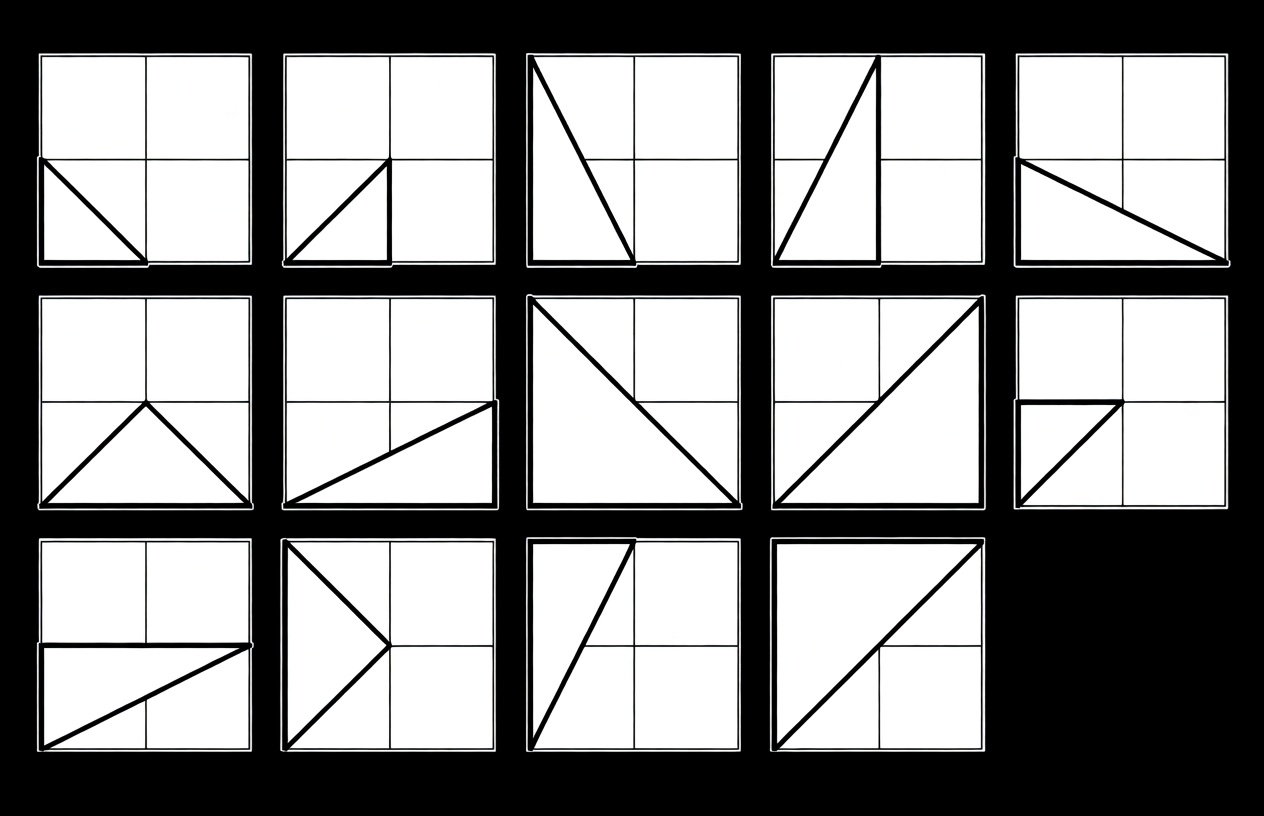

Right triangle coordinate example 2

Given that $0 \le x_1, y_1, x_2, y_2 \le 50$ , how many right triangles can be formed?

View on Project Euler

Implementations

#include <iostream>

unsigned int gcd(unsigned int a, unsigned int b) {
    while (a != 0) {
        unsigned int c = a;
        a = b % a;
        b = c;
    }
    return b;
}

long long right_triangles() {
    const unsigned int size = 50;
    long long result = 3LL * size * size;  // origin + x-axis + y-axis

    // right angle at interior point P(px, py); uses GCD to step through valid Q points where PO·PQ = 0
    // only iterates bottom triangle (py <= px) and doubles count for symmetry (except diagonal)
    for (unsigned int px = 1; px <= size; ++px) {
        for (unsigned int py = 1; py <= px; ++py) {
            unsigned int factor = gcd(px, py);
            unsigned int dx = px / factor;
            unsigned int dy = py / factor;

            unsigned int found = 0;

            // Q below P
            int qx = static_cast<int>(px) - dy;
            int qy = static_cast<int>(py) + dx;
            while (qx >= 0 && qy <= static_cast<int>(size)) {
                ++found;
                qx -= dy;
                qy += dx;
            }

            // Q above P
            qx = static_cast<int>(px) + dy;
            qy = static_cast<int>(py) - dx;
            while (qy >= 0 && qx <= static_cast<int>(size)) {
                ++found;
                qx += dy;
                qy -= dx;
            }

            if (px != py) found *= 2;
            result += found;
        }
    }
    return result;
}

View on GitHub

~10ms

package main

func gcd(a, b uint) uint {
    for a != 0 {
        c := a
        a = b % a
        b = c
    }
    return b
}

func rightTriangles() int {
    const size = 50
    result := 3 * size * size
    for px := uint(1); px <= size; px++ {
        for py := uint(1); py <= px; py++ {
            factor := gcd(px, py)
            dx := px / factor
            dy := py / factor
            found := uint(0)
            // Q below P
            qx := int(px) - int(dy)
            qy := int(py) + int(dx)
            for qx >= 0 && qy <= size {
                found++
                qx -= int(dy)
                qy += int(dx)
            }
            // Q above P
            qx = int(px) + int(dy)
            qy = int(py) - int(dx)
            for qy >= 0 && qx <= size {
                found++
                qx += int(dy)
                qy -= int(dx)
            }
            if px != py {
                found *= 2
            }
            result += int(found)
        }
    }
    return result
}

View on GitHub

~10ms

public class Euler091 {
    static int gcd(int a, int b) {
        while (a != 0) {
            int c = a;
            a = b % a;
            b = c;
        }
        return b;
    }

    static long rightTriangles() {
        final int size = 50;
        long result = 3L * size * size;
        for (int px = 1; px <= size; px++) {
            for (int py = 1; py <= px; py++) {
                int factor = gcd(px, py);
                int dx = px / factor;
                int dy = py / factor;
                int found = 0;
                // Q below P
                int qx = px - dy;
                int qy = py + dx;
                while (qx >= 0 && qy <= size) {
                    found++;
                    qx -= dy;
                    qy += dx;
                }
                // Q above P
                qx = px + dy;
                qy = py - dx;
                while (qy >= 0 && qx <= size) {
                    found++;
                    qx += dy;
                    qy -= dx;
                }
                if (px != py) found *= 2;
                result += found;
            }
        }
        return result;
    }
}

View on GitHub

~10ms

function gcd(a, b) {
  while (a !== 0) {
    const c = a;
    a = b % a;
    b = c;
  }
  return b;
}

function right_triangles() {
  const size = 50;
  let result = 3 * size * size;
  for (let px = 1; px <= size; px++) {
    for (let py = 1; py <= px; py++) {
      const factor = gcd(px, py);
      const dx = px / factor;
      const dy = py / factor;
      let found = 0;
      // Q below
      let qx = px - dy;
      let qy = py + dx;
      while (qx >= 0 && qy <= size) {
        found++;
        qx -= dy;
        qy += dx;
      }
      // Q above
      qx = px + dy;
      qy = py - dx;
      while (qy >= 0 && qx <= size) {
        found++;
        qx += dy;
        qy -= dx;
      }
      if (px !== py) found *= 2;
      result += found;
    }
  }
  return result;
}

View on GitHub

~10ms

def gcd(a, b):
    while a:
        a, b = b % a, a
    return b

def right_triangles():
    size = 50
    result = 3 * size * size
    for px in range(1, size + 1):
        for py in range(1, px + 1):
            factor = gcd(px, py)
            dx = px // factor
            dy = py // factor
            found = 0
            # Q below P
            qx = px - dy
            qy = py + dx
            while qx >= 0 and qy <= size:
                found += 1
                qx -= dy
                qy += dx
            # Q above P
            qx = px + dy
            qy = py - dx
            while qy >= 0 and qx <= size:
                found += 1
                qx += dy
                qy -= dx
            if px != py:
                found *= 2
            result += found
    return result

View on GitHub

~10ms

pub fn right_triangles_integer_coordinates() -> usize {
    const SIZE: usize = 50;
    let mut result = 3 * SIZE * SIZE;
    for px in 1..=SIZE {
        for py in 1..=px {
            let factor = gcd(px, py);
            let dx = px / factor;
            let dy = py / factor;
            let mut found = 0;
            // Q below P
            let mut qx = px as i32 - dy as i32;
            let mut qy = py as i32 + dx as i32;
            while qx >= 0 && qy <= SIZE as i32 {
                found += 1;
                qx -= dy as i32;
                qy += dx as i32;
            }
            // Q above P
            let mut qx = px as i32 + dy as i32;
            let mut qy = py as i32 - dx as i32;
            while qy >= 0 && qx <= SIZE as i32 {
                found += 1;
                qx += dy as i32;
                qy -= dx as i32;
            }
            if px != py {
                found *= 2;
            }
            result += found;
        }
    }
    result
}

fn gcd(a: usize, b: usize) -> usize {
    if b == 0 {
        a
    } else {
        gcd(b, a % b)
    }
}

View on GitHub

~10ms

#include <iostream>

unsigned int gcd(unsigned int a, unsigned int b) {
    while (a != 0) {
        unsigned int c = a;
        a = b % a;
        b = c;
    }
    return b;
}

long long right_triangles() {
    const unsigned int size = 50;
    long long result = 3LL * size * size;  // origin + x-axis + y-axis

    // right angle at interior point P(px, py); uses GCD to step through valid Q points where PO·PQ = 0
    // only iterates bottom triangle (py <= px) and doubles count for symmetry (except diagonal)
    for (unsigned int px = 1; px <= size; ++px) {
        for (unsigned int py = 1; py <= px; ++py) {
            unsigned int factor = gcd(px, py);
            unsigned int dx = px / factor;
            unsigned int dy = py / factor;

            unsigned int found = 0;

            // Q below P
            int qx = static_cast<int>(px) - dy;
            int qy = static_cast<int>(py) + dx;
            while (qx >= 0 && qy <= static_cast<int>(size)) {
                ++found;
                qx -= dy;
                qy += dx;
            }

            // Q above P
            qx = static_cast<int>(px) + dy;
            qy = static_cast<int>(py) - dx;
            while (qy >= 0 && qx <= static_cast<int>(size)) {
                ++found;
                qx += dy;
                qy -= dx;
            }

            if (px != py) found *= 2;
            result += found;
        }
    }
    return result;
}

View on GitHub

~10ms

package main

func gcd(a, b uint) uint {
    for a != 0 {
        c := a
        a = b % a
        b = c
    }
    return b
}

func rightTriangles() int {
    const size = 50
    result := 3 * size * size
    for px := uint(1); px <= size; px++ {
        for py := uint(1); py <= px; py++ {
            factor := gcd(px, py)
            dx := px / factor
            dy := py / factor
            found := uint(0)
            // Q below P
            qx := int(px) - int(dy)
            qy := int(py) + int(dx)
            for qx >= 0 && qy <= size {
                found++
                qx -= int(dy)
                qy += int(dx)
            }
            // Q above P
            qx = int(px) + int(dy)
            qy = int(py) - int(dx)
            for qy >= 0 && qx <= size {
                found++
                qx += int(dy)
                qy -= int(dx)
            }
            if px != py {
                found *= 2
            }
            result += int(found)
        }
    }
    return result
}

View on GitHub

~10ms

public class Euler091 {
    static int gcd(int a, int b) {
        while (a != 0) {
            int c = a;
            a = b % a;
            b = c;
        }
        return b;
    }

    static long rightTriangles() {
        final int size = 50;
        long result = 3L * size * size;
        for (int px = 1; px <= size; px++) {
            for (int py = 1; py <= px; py++) {
                int factor = gcd(px, py);
                int dx = px / factor;
                int dy = py / factor;
                int found = 0;
                // Q below P
                int qx = px - dy;
                int qy = py + dx;
                while (qx >= 0 && qy <= size) {
                    found++;
                    qx -= dy;
                    qy += dx;
                }
                // Q above P
                qx = px + dy;
                qy = py - dx;
                while (qy >= 0 && qx <= size) {
                    found++;
                    qx += dy;
                    qy -= dx;
                }
                if (px != py) found *= 2;
                result += found;
            }
        }
        return result;
    }
}

View on GitHub

~10ms

function gcd(a, b) {
  while (a !== 0) {
    const c = a;
    a = b % a;
    b = c;
  }
  return b;
}

function right_triangles() {
  const size = 50;
  let result = 3 * size * size;
  for (let px = 1; px <= size; px++) {
    for (let py = 1; py <= px; py++) {
      const factor = gcd(px, py);
      const dx = px / factor;
      const dy = py / factor;
      let found = 0;
      // Q below
      let qx = px - dy;
      let qy = py + dx;
      while (qx >= 0 && qy <= size) {
        found++;
        qx -= dy;
        qy += dx;
      }
      // Q above
      qx = px + dy;
      qy = py - dx;
      while (qy >= 0 && qx <= size) {
        found++;
        qx += dy;
        qy -= dx;
      }
      if (px !== py) found *= 2;
      result += found;
    }
  }
  return result;
}

View on GitHub

~10ms

def gcd(a, b):
    while a:
        a, b = b % a, a
    return b

def right_triangles():
    size = 50
    result = 3 * size * size
    for px in range(1, size + 1):
        for py in range(1, px + 1):
            factor = gcd(px, py)
            dx = px // factor
            dy = py // factor
            found = 0
            # Q below P
            qx = px - dy
            qy = py + dx
            while qx >= 0 and qy <= size:
                found += 1
                qx -= dy
                qy += dx
            # Q above P
            qx = px + dy
            qy = py - dx
            while qy >= 0 and qx <= size:
                found += 1
                qx += dy
                qy -= dx
            if px != py:
                found *= 2
            result += found
    return result

View on GitHub

~10ms

pub fn right_triangles_integer_coordinates() -> usize {
    const SIZE: usize = 50;
    let mut result = 3 * SIZE * SIZE;
    for px in 1..=SIZE {
        for py in 1..=px {
            let factor = gcd(px, py);
            let dx = px / factor;
            let dy = py / factor;
            let mut found = 0;
            // Q below P
            let mut qx = px as i32 - dy as i32;
            let mut qy = py as i32 + dx as i32;
            while qx >= 0 && qy <= SIZE as i32 {
                found += 1;
                qx -= dy as i32;
                qy += dx as i32;
            }
            // Q above P
            let mut qx = px as i32 + dy as i32;
            let mut qy = py as i32 - dx as i32;
            while qy >= 0 && qx <= SIZE as i32 {
                found += 1;
                qx += dy as i32;
                qy -= dx as i32;
            }
            if px != py {
                found *= 2;
            }
            result += found;
        }
    }
    result
}

fn gcd(a: usize, b: usize) -> usize {
    if b == 0 {
        a
    } else {
        gcd(b, a % b)
    }
}

View on GitHub

~10ms

Solution Notes

Mathematical Background

This problem counts the number of right-angled triangles formed by points with integer coordinates on a grid from (0,0) to (50,50), where one vertex is at the origin and the right angle can be at any of the three vertices.

Algorithm Analysis

The solution iterates over possible positions for the right angle at point P, using GCD to find perpendicular directions. It counts valid Q positions in both directions from P, accounting for symmetry when P is not on the diagonal.

Performance

All implementations run in under 100ms, with the algorithm being O(N²) where N=50, making it highly efficient for this scale.

Key Insights

Cases where the right angle is at the origin or on the axes are counted separately.
GCD is used to reduce vectors to their simplest form for stepping along lattice lines.
Symmetry reduces computation by considering only px >= py and doubling counts.

Educational Value

Illustrates the application of number theory (GCD) in geometric problems on integer lattices, demonstrating how combinatorial methods can efficiently solve counting problems.
