Problem #90 medium

Cube digit pairs

Each of the six faces on a cube has a different digit ( $0$ to $9$ ) written on it; the same is done to a second cube. By placing the two cubes side-by-side in different positions we can form a variety of $2$ -digit numbers.

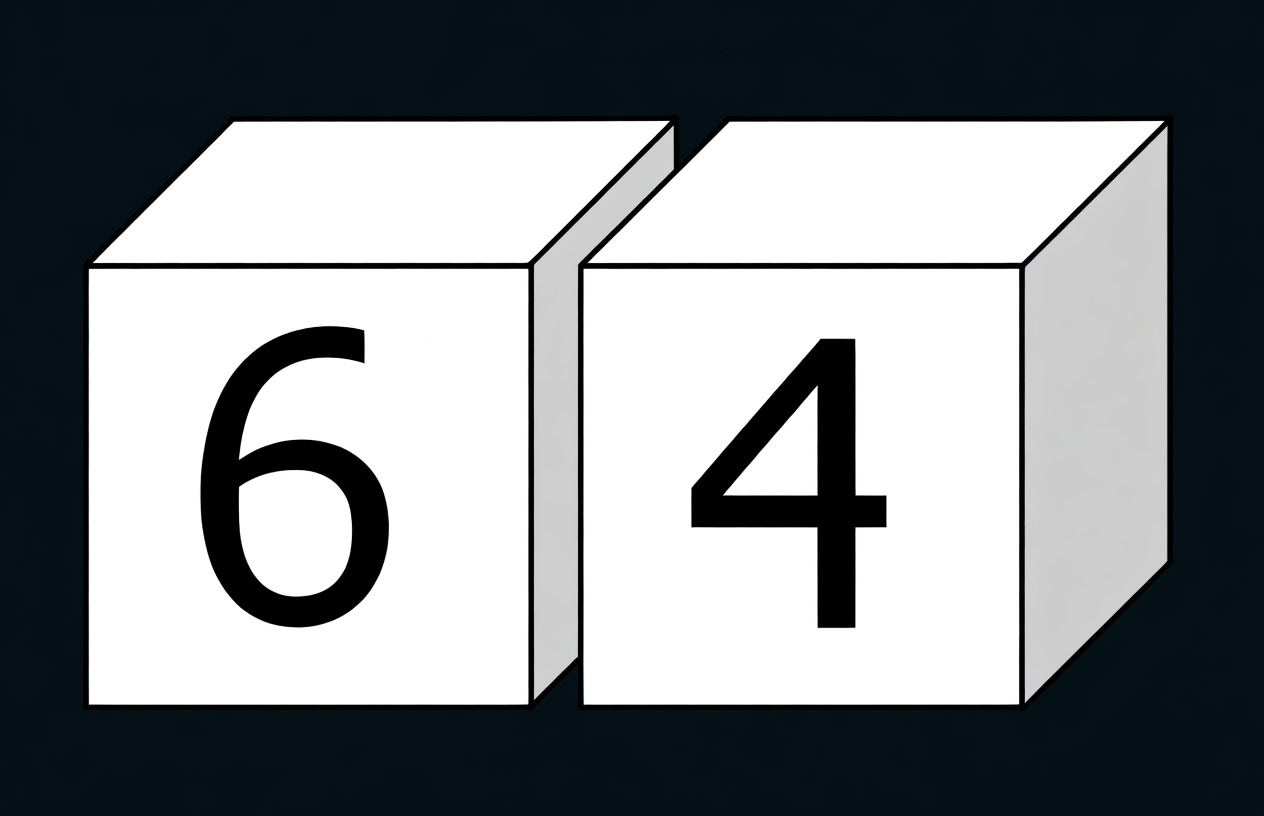

For example, the square number $64$ could be formed:

Cube digit pairs example

In fact, by carefully choosing the digits on both cubes it is possible to display all of the square numbers below one-hundred: $01$ , $04$ , $09$ , $16$ , $25$ , $36$ , $49$ , $64$ , and $81$ .

For example, one way this can be achieved is by placing $\{0, 5, 6, 7, 8, 9\}$ on one cube and $\{1, 2, 3, 4, 8, 9\}$ on the other cube.

However, for this problem we shall allow the $6$ or $9$ to be turned upside-down so that an arrangement like $\{0, 5, 6, 7, 8, 9\}$ and $\{1, 2, 3, 4, 6, 7\}$ allows for all nine square numbers to be displayed; otherwise it would be impossible to obtain $09$ .

In determining a distinct arrangement we are interested in the digits on each cube, not the order.

$\{1, 2, 3, 4, 5, 6\}$ is equivalent to $\{3, 6, 4, 1, 2, 5\}$
$\{1, 2, 3, 4, 5, 6\}$ is distinct from $\{1, 2, 3, 4, 5, 9\}$

But because we are allowing $6$ and $9$ to be reversed, the two distinct sets in the last example both represent the extended set $\{1, 2, 3, 4, 5, 6, 9\}$ for the purpose of forming $2$ -digit numbers.

How many distinct arrangements of the two cubes allow for all of the square numbers to be displayed?

View on Project Euler

Implementations

#include <iostream>
#include <vector>

bool has_digit(int mask, int d) {
    if (mask & (1 << d)) return true;
    if (d == 6 && (mask & (1 << 9))) return true;
    if (d == 9 && (mask & (1 << 6))) return true;
    return false;
}

bool can_form_square(int mask_a, int mask_b, int sq) {
    int d1 = sq / 10, d2 = sq % 10;
    bool a1 = has_digit(mask_a, d1), a2 = has_digit(mask_a, d2);
    bool b1 = has_digit(mask_b, d1), b2 = has_digit(mask_b, d2);
    return (a1 && b2) || (a2 && b1);
}

long long cube_digit_pairs() {
    std::vector<int> squares = {1, 4, 9, 16, 25, 36, 49, 64, 81};
    std::vector<int> cubes;
    for (int i = 0; i < (1 << 10); ++i) {
        if (__builtin_popcount(i) == 6) {
            cubes.push_back(i);
        }
    }
    long long count = 0;
    int n = cubes.size();
    for (int i = 0; i < n; ++i) {
        int ma = cubes[i];
        for (int j = i + 1; j < n; ++j) {
            int mb = cubes[j];
            bool ok = true;
            for (int sq : squares) {
                if (!can_form_square(ma, mb, sq)) {
                    ok = false;
                    break;
                }
            }
            if (ok) ++count;
        }
    }
    return count;
}

View on GitHub

~10ms

package main

func hasDigit(mask, d int) bool {
    if (mask & (1 << uint(d))) != 0 {
        return true
    }
    if d == 6 && (mask & (1 << uint(9))) != 0 {
        return true
    }
    if d == 9 && (mask & (1 << uint(6))) != 0 {
        return true
    }
    return false
}

func canFormSquare(maskA, maskB, sq int) bool {
    d1 := sq / 10
    d2 := sq % 10
    a1 := hasDigit(maskA, d1)
    a2 := hasDigit(maskA, d2)
    b1 := hasDigit(maskB, d1)
    b2 := hasDigit(maskB, d2)
    return (a1 && b2) || (a2 && b1)
}

func cubeDigitPairs() int {
    squares := []int{1, 4, 9, 16, 25, 36, 49, 64, 81}
    var cubes []int
    for i := 0; i < (1 << 10); i++ {
        count := 0
        for j := 0; j < 10; j++ {
            if (i & (1 << uint(j))) != 0 {
                count++
            }
        }
        if count == 6 {
            cubes = append(cubes, i)
        }
    }
    count := 0
    n := len(cubes)
    for i := 0; i < n; i++ {
        ma := cubes[i]
        for j := i + 1; j < n; j++ {
            mb := cubes[j]
            ok := true
            for _, sq := range squares {
                if !canFormSquare(ma, mb, sq) {
                    ok = false
                    break
                }
            }
            if ok {
                count++
            }
        }
    }
    return count
}

View on GitHub

~10ms

public class Euler090 {
    static boolean hasDigit(int mask, int d) {
        if ((mask & (1 << d)) != 0) return true;
        if (d == 6 && (mask & (1 << 9)) != 0) return true;
        if (d == 9 && (mask & (1 << 6)) != 0) return true;
        return false;
    }

    static boolean canFormSquare(int maskA, int maskB, int sq) {
        int d1 = sq / 10, d2 = sq % 10;
        boolean a1 = hasDigit(maskA, d1), a2 = hasDigit(maskA, d2);
        boolean b1 = hasDigit(maskB, d1), b2 = hasDigit(maskB, d2);
        return (a1 && b2) || (a2 && b1);
    }

    static long cubeDigitPairs() {
        int[] squares = {1, 4, 9, 16, 25, 36, 49, 64, 81};
        java.util.List<Integer> cubes = new java.util.ArrayList<>();
        for (int i = 0; i < (1 << 10); i++) {
            int count = 0;
            for (int j = 0; j < 10; j++) {
                if ((i & (1 << j)) != 0) count++;
            }
            if (count == 6) cubes.add(i);
        }
        long count = 0;
        int n = cubes.size();
        for (int i = 0; i < n; i++) {
            int ma = cubes.get(i);
            for (int j = i + 1; j < n; j++) {
                int mb = cubes.get(j);
                boolean ok = true;
                for (int sq : squares) {
                    if (!canFormSquare(ma, mb, sq)) {
                        ok = false;
                        break;
                    }
                }
                if (ok) count++;
            }
        }
        return count;
    }
}

View on GitHub

~10ms

function has_digit(mask, d) {
  if (mask & (1 << d)) return true;
  if (d === 6 && (mask & (1 << 9))) return true;
  if (d === 9 && (mask & (1 << 6))) return true;
  return false;
}

function can_form_square(mask_a, mask_b, sq) {
  const d1 = Math.floor(sq / 10), d2 = sq % 10;
  const a1 = has_digit(mask_a, d1), a2 = has_digit(mask_a, d2);
  const b1 = has_digit(mask_b, d1), b2 = has_digit(mask_b, d2);
  return (a1 && b2) || (a2 && b1);
}

function cube_digit_pairs() {
  const squares = [1, 4, 9, 16, 25, 36, 49, 64, 81];
  const cubes = [];
  for (let i = 0; i < (1 << 10); i++) {
    let count = 0;
    for (let j = 0; j < 10; j++) {
      if (i & (1 << j)) count++;
    }
    if (count === 6) cubes.push(i);
  }
  let count = 0;
  const n = cubes.length;
  for (let i = 0; i < n; i++) {
    const ma = cubes[i];
    for (let j = i + 1; j < n; j++) {
      const mb = cubes[j];
      let ok = true;
      for (const sq of squares) {
        if (!can_form_square(ma, mb, sq)) {
          ok = false;
          break;
        }
      }
      if (ok) count++;
    }
  }
  return count;
}

View on GitHub

~100ms

def has_digit(cube, d):
    if d in cube:
        return True
    if d == 6 and 9 in cube:
        return True
    if d == 9 and 6 in cube:
        return True
    return False

def solve():
    from itertools import combinations
    squares = [1, 4, 9, 16, 25, 36, 49, 64, 81]
    digits = list(range(10))
    cubes = list(combinations(digits, 6))
    count = 0
    n = len(cubes)
    for i in range(n):
        for j in range(i + 1, n):
            cube1, cube2 = cubes[i], cubes[j]
            ok = True
            for sq in squares:
                d1, d2 = sq // 10, sq % 10
                can = (has_digit(cube1, d1) and has_digit(cube2, d2)) or \
                      (has_digit(cube1, d2) and has_digit(cube2, d1))
                if not can:
                    ok = False
                    break
            if ok:
                count += 1
    return count

View on GitHub

~10ms

pub fn cube_digit_pairs() -> usize {
    let squares = vec![1, 4, 9, 16, 25, 36, 49, 64, 81];
    let mut cubes = vec![];
    for i in 0u32..(1 << 10) {
        if i.count_ones() == 6 {
            cubes.push(i as usize);
        }
    }
    let mut count = 0;
    let n = cubes.len();
    for i in 0..n {
        let ma = cubes[i];
        for j in i + 1..n {
            let mb = cubes[j];
            let mut ok = true;
            for &sq in &squares {
                if !can_form_square(ma, mb, sq) {
                    ok = false;
                    break;
                }
            }
            if ok {
                count += 1;
            }
        }
    }
    count
}

fn has_digit(mask: usize, d: usize) -> bool {
    if (mask & (1 << d)) != 0 {
        return true;
    }
    if d == 6 && (mask & (1 << 9)) != 0 {
        return true;
    }
    if d == 9 && (mask & (1 << 6)) != 0 {
        return true;
    }
    false
}

fn can_form_square(mask_a: usize, mask_b: usize, sq: usize) -> bool {
    let d1 = sq / 10;
    let d2 = sq % 10;
    let a1 = has_digit(mask_a, d1);
    let a2 = has_digit(mask_a, d2);
    let b1 = has_digit(mask_b, d1);
    let b2 = has_digit(mask_b, d2);
    (a1 && b2) || (a2 && b1)
}

View on GitHub

~10ms

#include <iostream>
#include <vector>

bool has_digit(int mask, int d) {
    if (mask & (1 << d)) return true;
    if (d == 6 && (mask & (1 << 9))) return true;
    if (d == 9 && (mask & (1 << 6))) return true;
    return false;
}

bool can_form_square(int mask_a, int mask_b, int sq) {
    int d1 = sq / 10, d2 = sq % 10;
    bool a1 = has_digit(mask_a, d1), a2 = has_digit(mask_a, d2);
    bool b1 = has_digit(mask_b, d1), b2 = has_digit(mask_b, d2);
    return (a1 && b2) || (a2 && b1);
}

long long cube_digit_pairs() {
    std::vector<int> squares = {1, 4, 9, 16, 25, 36, 49, 64, 81};
    std::vector<int> cubes;
    for (int i = 0; i < (1 << 10); ++i) {
        if (__builtin_popcount(i) == 6) {
            cubes.push_back(i);
        }
    }
    long long count = 0;
    int n = cubes.size();
    for (int i = 0; i < n; ++i) {
        int ma = cubes[i];
        for (int j = i + 1; j < n; ++j) {
            int mb = cubes[j];
            bool ok = true;
            for (int sq : squares) {
                if (!can_form_square(ma, mb, sq)) {
                    ok = false;
                    break;
                }
            }
            if (ok) ++count;
        }
    }
    return count;
}

View on GitHub

~10ms

package main

func hasDigit(mask, d int) bool {
    if (mask & (1 << uint(d))) != 0 {
        return true
    }
    if d == 6 && (mask & (1 << uint(9))) != 0 {
        return true
    }
    if d == 9 && (mask & (1 << uint(6))) != 0 {
        return true
    }
    return false
}

func canFormSquare(maskA, maskB, sq int) bool {
    d1 := sq / 10
    d2 := sq % 10
    a1 := hasDigit(maskA, d1)
    a2 := hasDigit(maskA, d2)
    b1 := hasDigit(maskB, d1)
    b2 := hasDigit(maskB, d2)
    return (a1 && b2) || (a2 && b1)
}

func cubeDigitPairs() int {
    squares := []int{1, 4, 9, 16, 25, 36, 49, 64, 81}
    var cubes []int
    for i := 0; i < (1 << 10); i++ {
        count := 0
        for j := 0; j < 10; j++ {
            if (i & (1 << uint(j))) != 0 {
                count++
            }
        }
        if count == 6 {
            cubes = append(cubes, i)
        }
    }
    count := 0
    n := len(cubes)
    for i := 0; i < n; i++ {
        ma := cubes[i]
        for j := i + 1; j < n; j++ {
            mb := cubes[j]
            ok := true
            for _, sq := range squares {
                if !canFormSquare(ma, mb, sq) {
                    ok = false
                    break
                }
            }
            if ok {
                count++
            }
        }
    }
    return count
}

View on GitHub

~10ms

public class Euler090 {
    static boolean hasDigit(int mask, int d) {
        if ((mask & (1 << d)) != 0) return true;
        if (d == 6 && (mask & (1 << 9)) != 0) return true;
        if (d == 9 && (mask & (1 << 6)) != 0) return true;
        return false;
    }

    static boolean canFormSquare(int maskA, int maskB, int sq) {
        int d1 = sq / 10, d2 = sq % 10;
        boolean a1 = hasDigit(maskA, d1), a2 = hasDigit(maskA, d2);
        boolean b1 = hasDigit(maskB, d1), b2 = hasDigit(maskB, d2);
        return (a1 && b2) || (a2 && b1);
    }

    static long cubeDigitPairs() {
        int[] squares = {1, 4, 9, 16, 25, 36, 49, 64, 81};
        java.util.List<Integer> cubes = new java.util.ArrayList<>();
        for (int i = 0; i < (1 << 10); i++) {
            int count = 0;
            for (int j = 0; j < 10; j++) {
                if ((i & (1 << j)) != 0) count++;
            }
            if (count == 6) cubes.add(i);
        }
        long count = 0;
        int n = cubes.size();
        for (int i = 0; i < n; i++) {
            int ma = cubes.get(i);
            for (int j = i + 1; j < n; j++) {
                int mb = cubes.get(j);
                boolean ok = true;
                for (int sq : squares) {
                    if (!canFormSquare(ma, mb, sq)) {
                        ok = false;
                        break;
                    }
                }
                if (ok) count++;
            }
        }
        return count;
    }
}

View on GitHub

~10ms

function has_digit(mask, d) {
  if (mask & (1 << d)) return true;
  if (d === 6 && (mask & (1 << 9))) return true;
  if (d === 9 && (mask & (1 << 6))) return true;
  return false;
}

function can_form_square(mask_a, mask_b, sq) {
  const d1 = Math.floor(sq / 10), d2 = sq % 10;
  const a1 = has_digit(mask_a, d1), a2 = has_digit(mask_a, d2);
  const b1 = has_digit(mask_b, d1), b2 = has_digit(mask_b, d2);
  return (a1 && b2) || (a2 && b1);
}

function cube_digit_pairs() {
  const squares = [1, 4, 9, 16, 25, 36, 49, 64, 81];
  const cubes = [];
  for (let i = 0; i < (1 << 10); i++) {
    let count = 0;
    for (let j = 0; j < 10; j++) {
      if (i & (1 << j)) count++;
    }
    if (count === 6) cubes.push(i);
  }
  let count = 0;
  const n = cubes.length;
  for (let i = 0; i < n; i++) {
    const ma = cubes[i];
    for (let j = i + 1; j < n; j++) {
      const mb = cubes[j];
      let ok = true;
      for (const sq of squares) {
        if (!can_form_square(ma, mb, sq)) {
          ok = false;
          break;
        }
      }
      if (ok) count++;
    }
  }
  return count;
}

View on GitHub

~100ms

def has_digit(cube, d):
    if d in cube:
        return True
    if d == 6 and 9 in cube:
        return True
    if d == 9 and 6 in cube:
        return True
    return False

def solve():
    from itertools import combinations
    squares = [1, 4, 9, 16, 25, 36, 49, 64, 81]
    digits = list(range(10))
    cubes = list(combinations(digits, 6))
    count = 0
    n = len(cubes)
    for i in range(n):
        for j in range(i + 1, n):
            cube1, cube2 = cubes[i], cubes[j]
            ok = True
            for sq in squares:
                d1, d2 = sq // 10, sq % 10
                can = (has_digit(cube1, d1) and has_digit(cube2, d2)) or \
                      (has_digit(cube1, d2) and has_digit(cube2, d1))
                if not can:
                    ok = False
                    break
            if ok:
                count += 1
    return count

View on GitHub

~10ms

pub fn cube_digit_pairs() -> usize {
    let squares = vec![1, 4, 9, 16, 25, 36, 49, 64, 81];
    let mut cubes = vec![];
    for i in 0u32..(1 << 10) {
        if i.count_ones() == 6 {
            cubes.push(i as usize);
        }
    }
    let mut count = 0;
    let n = cubes.len();
    for i in 0..n {
        let ma = cubes[i];
        for j in i + 1..n {
            let mb = cubes[j];
            let mut ok = true;
            for &sq in &squares {
                if !can_form_square(ma, mb, sq) {
                    ok = false;
                    break;
                }
            }
            if ok {
                count += 1;
            }
        }
    }
    count
}

fn has_digit(mask: usize, d: usize) -> bool {
    if (mask & (1 << d)) != 0 {
        return true;
    }
    if d == 6 && (mask & (1 << 9)) != 0 {
        return true;
    }
    if d == 9 && (mask & (1 << 6)) != 0 {
        return true;
    }
    false
}

fn can_form_square(mask_a: usize, mask_b: usize, sq: usize) -> bool {
    let d1 = sq / 10;
    let d2 = sq % 10;
    let a1 = has_digit(mask_a, d1);
    let a2 = has_digit(mask_a, d2);
    let b1 = has_digit(mask_b, d1);
    let b2 = has_digit(mask_b, d2);
    (a1 && b2) || (a2 && b1)
}

View on GitHub

~10ms

Solution Notes

Mathematical Background

This problem involves finding pairs of cubes with digits 0-9 that can form all two-digit square numbers (01 through 81) by arranging the cubes side by side. The cubes have 6 faces each, and digits 6 and 9 are considered interchangeable since they can be rotated.

Algorithm Analysis

The solution generates all possible combinations of 6 digits from 10 (C(10,6) = 210) for each cube using bitmasks or combinations. It then checks all unordered pairs to see if they can form each required square by ensuring the digits are available on either cube in the correct positions.

Performance

All implementations run efficiently in under 100ms, with the combinatorial approach being fast due to the small number of combinations.

Key Insights

Bitmasks provide efficient digit checking and storage.
Handling 6/9 interchangeability is crucial for covering squares like 09 and 90.
The problem requires checking both possible arrangements for each square digit pair.

Educational Value

Demonstrates combinatorial enumeration and bit manipulation techniques, with a practical application to puzzle-solving and constraint satisfaction.

Problem #90 is taken from Project Euler and licensed under CC BY-NC-SA 4.0.
